Carton Taping Machine
A carton taping machine or Carton Sealing Machine is an automated or semi-automated Packing Machine used to seal carton boxes with adhesive tape, typically in industrial or packaging settings. It helps streamline the packaging process by efficiently applying BOPP tape to both the top and bottom of cartons sealing the flaps in a uniform and consistent manner.
These machines come in various types, including side belt, top and bottom belt, and random case sealers, designed to handle different sizes of boxes. Carton taping machine enhances productivity by reducing packing time, reduce labour costs, and ensure secure and professional-looking packaging.
Advantages/Features of Carton taping machine
– Speed up Sealing Process
– Optimizes Tape Usage, reducing wastage
– Can handle various carton sizes with adjustable settings
– Can be integrated with conveyor system for seamless packaging process.

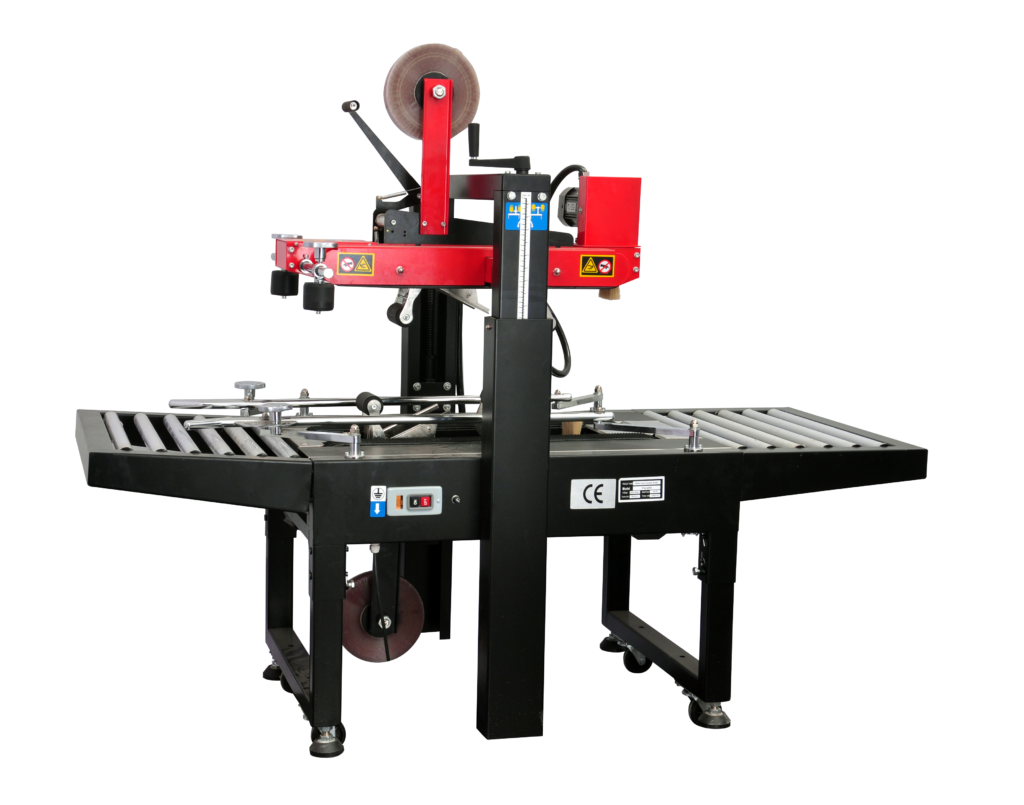

| Model | MPS-CS040MA (6050) |
|---|---|
| Function | Top & Bottom Drive |
| Power Supply | 1 Phase 220V 50 Hz 200W |
| Conveying Belt Speed | 20 mtrs/Min. |
| Min. Carton Size | W 150mm x H 150mm x L No Bar |
| Max. Carton Size | W 500mm x H 500mm x L No Bar |
| Width of Adhesive Tape | 48/60/72 mm |
| Working Height | 635mm ~ 780mm (Adjustable) |
| Motor Power | 90W x 2 |
| Tape Used | BOPP/Waterfree/PVC |
| Dimensions (mm) | L 1755mm x W 740 x H (1445~1605) |
| Conveyor Carrying Capacity | Upto 18 Kgs. |
| Model | MPS-CS040MA (5050) |
|---|---|
| Function | Side Drive |
| Power Supply | 1 Phase 220V 50 Hz 200W |
| Conveying Belt Speed | 20 mtrs/Min. |
| Min. Carton Size | W 110mm x H 140mm x L No Bar |
| Max. Carton Size | W 500mm x H 500mm x L No Bar |
| Width of Adhesive Tape | 48/60/72 mm |
| Working Height | 635mm ~ 780mm (Adjustable) |
| Motor Power | 90W x 2 |
| Tape Used | BOPP/Waterfree/PVC |
| Dimensions (mm) | L 1755mm x W 740 x H (1445~1605) |
| Conveyor Carrying Capacity | Upto 18 Kgs. |

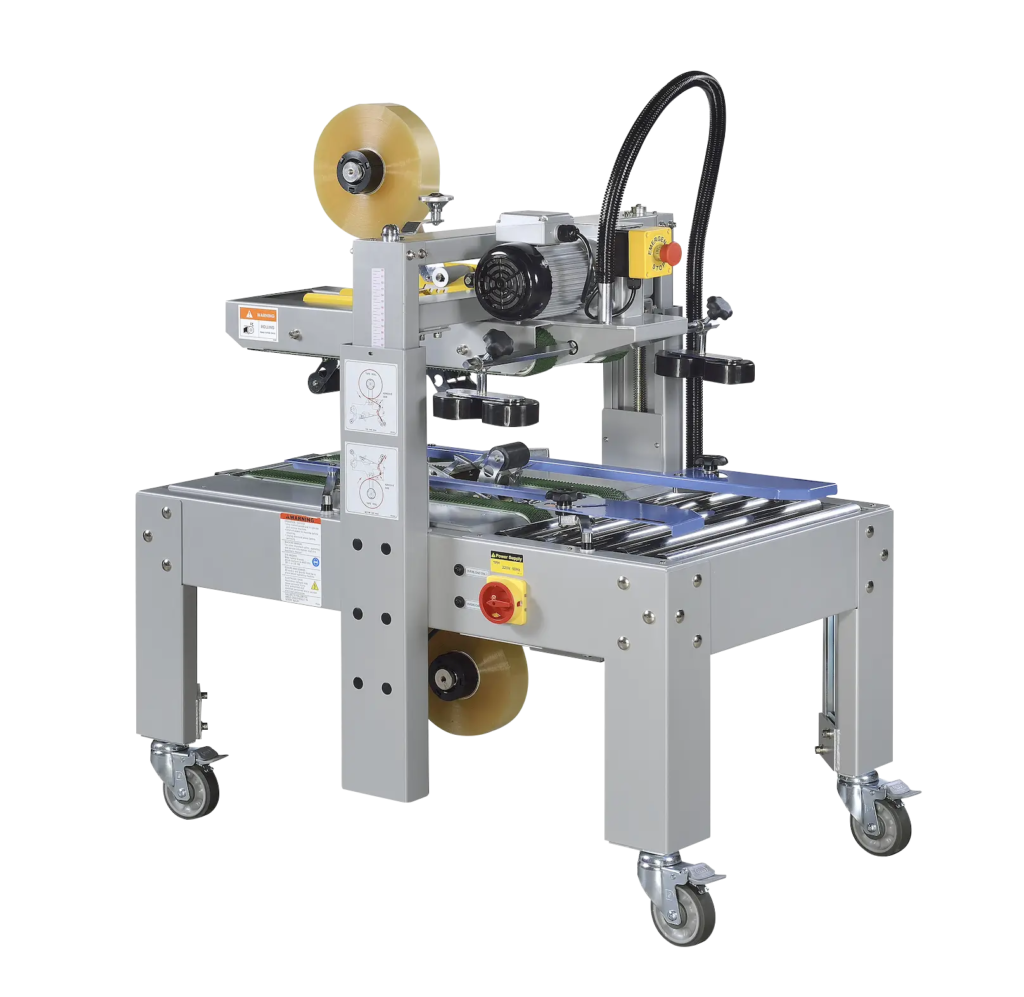

| Model | MPS-CS040MA-HD |
|---|---|
| Function | Top & Bottom Drive |
| Power Supply | 1 Phase 220V/380V 50 Hz 200W |
| 3 Phase 380V/415V/440V 50/60 Hz | |
| Conveying Belt Speed | 20 mtrs/Min. |
| Min. Carton Size | W 150mm x H 130mm x L 150mm ~ No Bar |
| Max. Carton Size | W 500mm x H 500mm x L No Bar |
| Width of Adhesive Tape | 48/60/72 mm |
| Working Height | 570mm ~ 770mm (Adjustable) |
| Motor Power | 200W x 2 |
| Tape Used | BOPP/Waterfree/PVC |
| Dimensions (mm) | L 1755mm x W 740 x H (1445~1605) |
| Conveyor Carrying Capacity | Upto 30 Kgs. |
| Power Consumption | 2.25 KW |
| Model | MPS-CS040SA |
|---|---|
| Function | Side Drive |
| Power Supply | 1 Phase 220V/380V 50 Hz 200W |
| 3 Phase 380V/415V/440V 50/60 Hz | |
| Conveying Belt Speed | 20 mtrs/Min. |
| Min. Carton Size | W 150mm x H 150mm x L 150mm ~ No Bar |
| Max. Carton Size | W 500mm x H 500mm x L No Bar |
| Width of Adhesive Tape | 48/60/72 mm |
| Working Height | 570mm ~ 770mm (Adjustable) |
| Motor Power | 90W x 2 |
| Tape Used | BOPP/Waterfree/PVC |
| Dimensions (mm) | L 1250mm x W 910 mm x H 1315mm |
| Conveyor Carrying Capacity | Upto 30 Kgs. |
| Power Consumption | 2.25 KW |
| Compressed Air | 6 KG/cm2 |

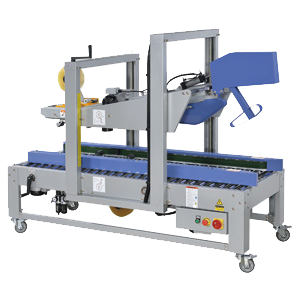

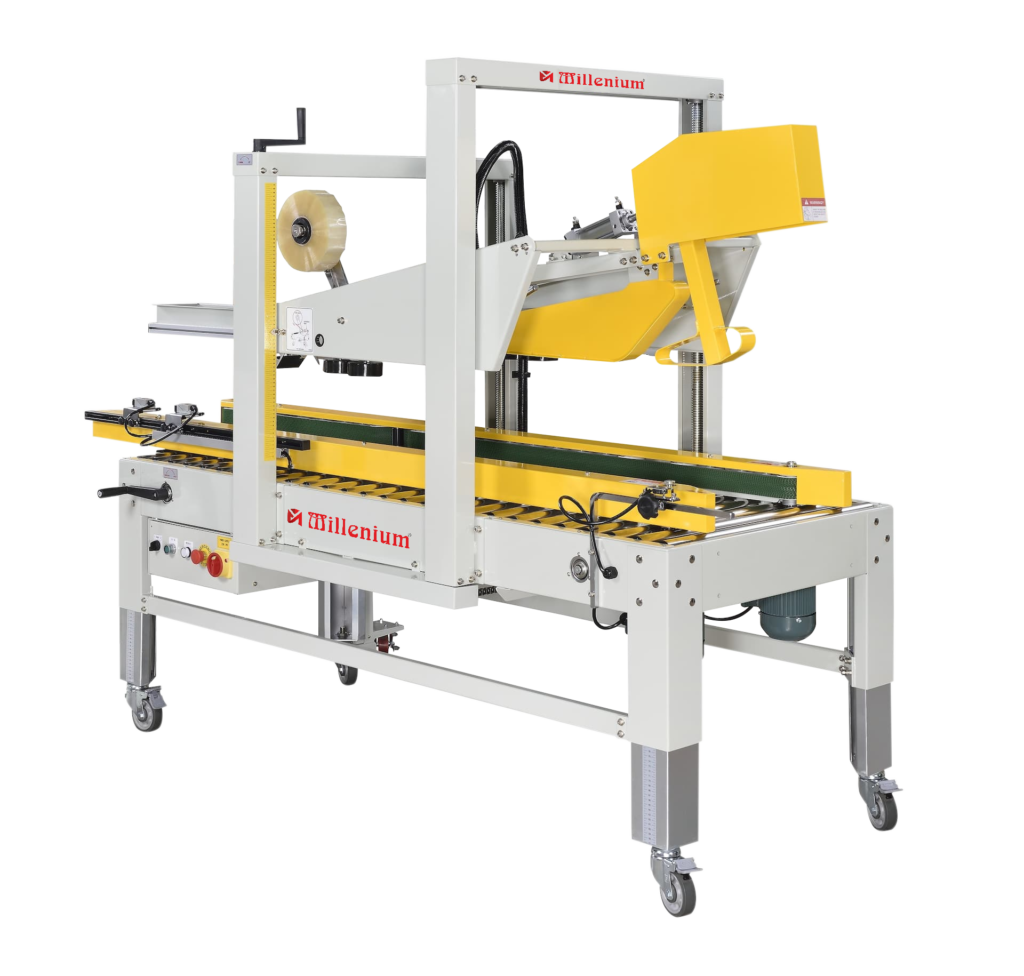

| Model | MPS-CS040MA-FC |
|---|---|
| Function | Side Drive |
| Power Supply | 1 Phase 220V/230V/240V 50 Hz 200W |
| Conveying Belt Speed | 20 mtrs/Min. |
| Min. Carton Size | W 150mm x H 150mm x L 150mm ~ No Bar |
| Max. Carton Size | W 500mm x H 500mm x L No Bar |
| Width of Adhesive Tape | 48/60/72 mm |
| Working Height | 570mm ~ 770mm (Adjustable) |
| Motor Power | 90W x 2 |
| Tape Used | BOPP/Waterfree/PVC |
| Dimensions (mm) | L 1900mm x W 960 mm x H 1600mm |
| Conveyor Carrying Capacity | Upto 30 Kgs. |
| Power Consumption | 2.25 KW |
| Compressed Air | 6 KG/cm2 |
| Compressed Air | 6 KG/cm2 |

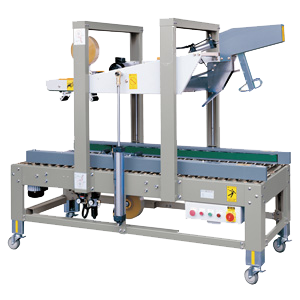

| Model | MPS-CS040SA-FC |
|---|---|
| Function | Side Drive |
| Power Supply | 1 Phase 220V/230V/240V 50 Hz 200W |
| Conveying Belt Speed | 20 mtrs/Min. |
| Min. Carton Size | W 150mm x H 150mm x L 150mm ~ No Bar |
| Max. Carton Size | W 500mm x H 500mm x L No Bar |
| Width of Adhesive Tape | 48/60/72 mm |
| Working Height | 570mm ~ 770mm (Adjustable) |
| Motor Power | 90W x 2 |
| Tape Used | BOPP/Waterfree/PVC |
| Dimensions (mm) | L 1985mm x W 950 mm x H 1625mm |
| Conveyor Carrying Capacity | Upto 30 Kgs. |
| Power Consumption | 2.25 KW |
| Compressed Air | 6 KG/cm2 |
| Compressed Air | 6 KG/cm2 |
| Model | Carton Edge Sealer |
|---|---|
| Function | Side Drive |
| Power Supply | 1 Phase 110V/220V/240V 50/60HZ |
| Packing size | Max.: L600 x W500 x H500 MM Min.: L280 x W200 x H180 MM |
| Tape Width | 50MM (2”) or 76mm (3”) |
| Working Table Height | 570~770MM (Adjustable) |
| Transmit Speed | 20M/Min. |
| Air Compressor | 6 Kg/cm2 |
