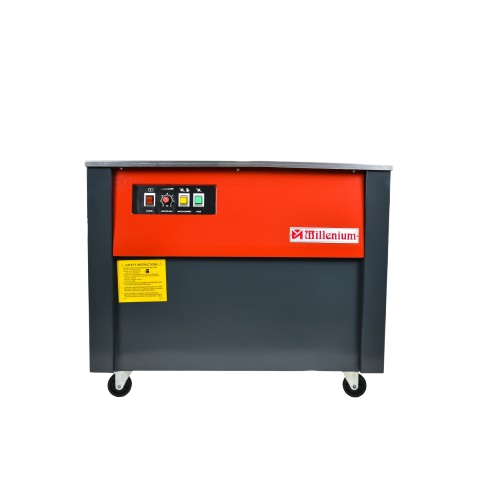

Strapping Machine – Semi Automatic

Strapping Machine - Semi Automatic



MPS-001SH

Strapping Machine - Semi Automatic

The Most Commonly and widely used Packing Machine in Varied industry like Printing and Publishing units, Media, Pharmaceuticals, Electronics, etc.

Strapping Machine is used to strap pack the carton boxes, news papers, books, unitizing or bundling, thus makes it easier for carrying and transporting.

Our Semi Automatic Strapping Machine is designed for one touch easy operation, the instant heating method starts within 20 seconds with energy saving mode which automatically activates within 15 seconds of non - operation thus ensuring lesser breakdown and better longevity of the machine.

Lift type table-top option allows easy maintenance; intelligent controls in PCB can isolate malfunctioning and reduce time for repairs.

Easy Tension adjustment function which is placed externally facilitates easy and simple selection of tension force.

Strap width can easily be changed with the help of guides

Furthermore the most important is safety, our safety design, which has lower control voltage (DC 24V), minimises the chance of electrical shock.

Features
User Friendly – Easy apply Straps on Carton
Ready to operate in few seconds
Heat Seals the straps
High Quality Auto Cutter
Light in Weight
Use less Space (Can accommodate any where)

Specifications:

ModelMPS-001SH
Strap Cycle Speed1.5 sec./ strap (30 - 40 Straps/min.)
Tension Strength15~60Kg
Table Height750mm (001SH) & 380 mm (002LTH)
Strap Width5~15mm (Adjustable)
Sealing MethodHeat Sealed
Minimum Strapping Size60 mm (W) x 30 mm (H)
Maximum Strapping SizeNot Stipulated
Driving Motor1 Ø 220V 200W
Power Supply1 Ø 220V 50 Hz 350 W
Dimensions (mm)900(W) x 580(D) x 750(H)
Weight110Kg
