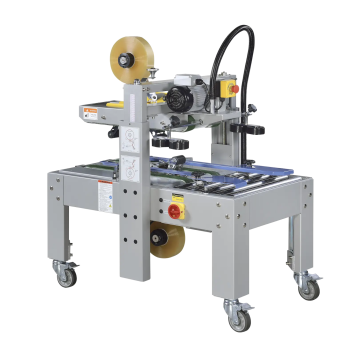

Carton Taping MPS-CS040MA-HD
The Heavy-Duty Carton Taping Machine is designed for high-performance sealing of large, heavy, and bulk cartons in demanding packaging environments. Built with a robust frame and powerful sealing mechanism, it ensures strong, secure, and consistent tape application on both the top and bottom of cartons.
Suitable for industries such as logistics, manufacturing, e-commerce, and warehousing, this machine delivers reliable, high-speed operation for heavy-duty applications.
| Model | MPS-CS040MA-HD |
|---|---|
| Function | Top & Bottom Drive |
| Power Supply | 1 Phase 220V/380V 50 Hz 200W |
| 3 Phase 380V/415V/440V 50/60 Hz | |
| Conveying Belt Speed | 20 mtrs/Min. |
| Min. Carton Size | W 150mm x H 130mm x L 150mm ~ No Bar |
| Max. Carton Size | W 500mm x H 500mm x L No Bar |
| Width of Adhesive Tape | 48/60/72 mm |
| Working Height | 570mm ~ 770mm (Adjustable) |
| Motor Power | 200W x 2 |
| Tape Used | BOPP/Waterfree/PVC |
| Dimensions (mm) | L 1755mm x W 740 x H (1445~1605) |
| Conveyor Carrying Capacity | Upto 30 Kgs. |
| Power Consumption | 2.25 KW |
