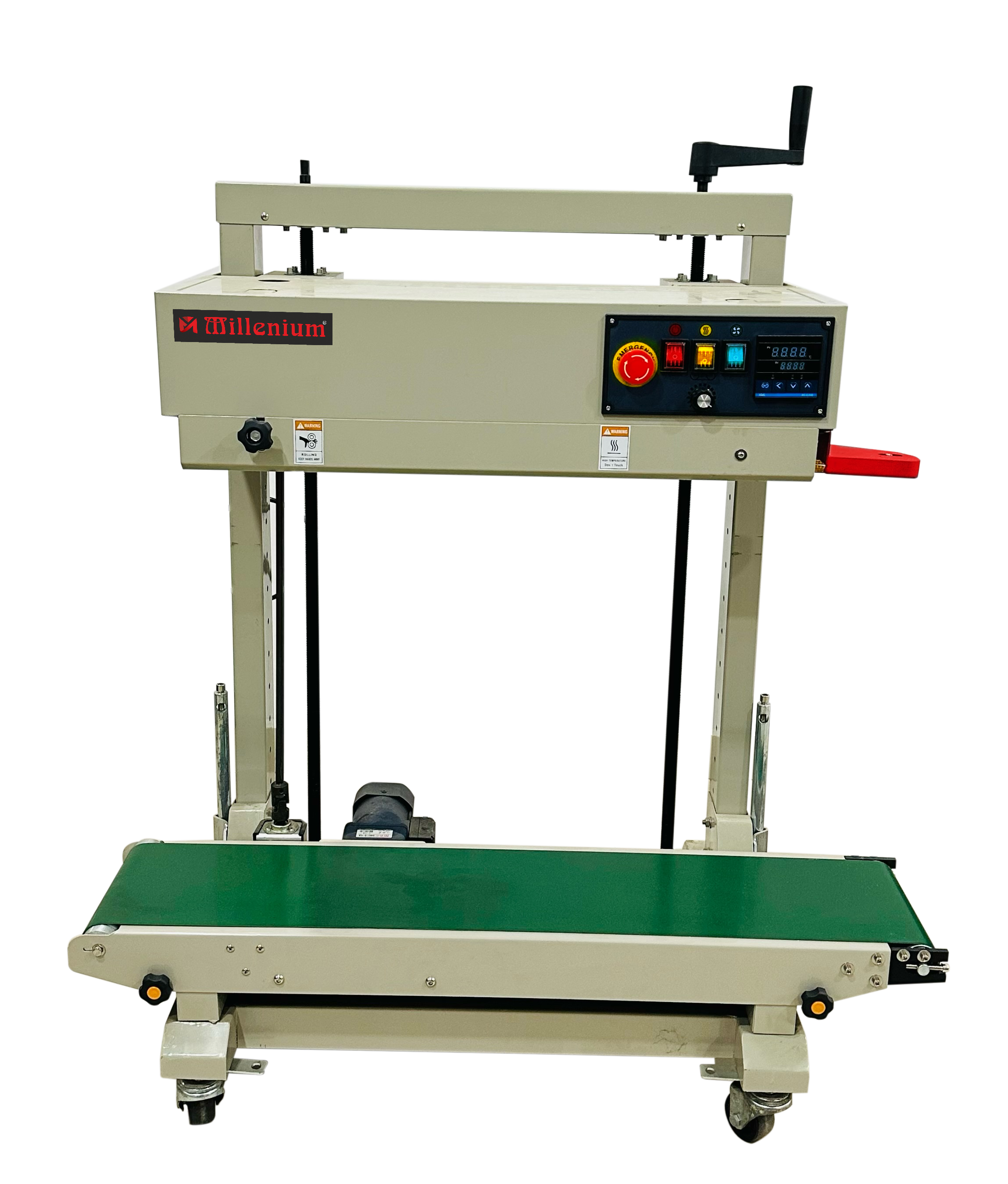

Continous Band Sealer
A continuous band sealer is a machine used to seal bags and pouches in a continuous process, making it ideal for high-volume packaging operations. It’s commonly used for sealing plastic or foil bags in industries like food, pharmaceuticals, chemicals, and retail, where efficiency and consistent seal quality are essential.
|
Technical Specifications |
Horizontal | Vertical | Nitrogen MS/SS |
|---|---|---|---|
|
Voltage |
AC 220V/50 Hz 110V/60 Hz |
AC 220V/50 Hz 110V/60 Hz |
AC 220V/50 Hz 110V/60 Hz |
|
Body |
MS/SS |
MS/SS |
MS/SS |
|
Motor Power |
50 W |
50 W |
50 W |
|
Sealing Power |
300 x 2 (W) |
300 x 2 (W) |
300 x 2 (W) |
|
(m/min) Speed |
0~12(0~16) |
0~12(0~16) |
0~12(0~16) |
|
(mm) Sealing Width |
8mm ~ 10mm |
8mm ~ 10mm |
8mm ~ 10mm |
|
Temperature Range |
0-300 (°C) |
0-300 (°C) |
0-300 (°C) |
|
Distance From Sealing Center to the Conveyor(mm) |
10~40 |
150~270 |
10~40 (H) 150~270 (V) |
|
Conveyor Size |
840mm X 180mm 840mm x 300mm (WC) |
840mm X 180mm 840mm x 300mm (WC) |
840mm X 180mm |
|
Max, Conveyor Loading for Single Bag |
≤ 3 Kg |
≤ 3 Kg |
≤ 3 Kg |
|
(LXWXH) (mm) Dimension |
840 X 380 X 270 |
840 X 380 X 550 |
840 X 380 X 550 |
|
Net weight |
25kgs |
30kgs |
35kgs |
|
Nitrogen Flushing |
NA |
NA |
Available |
|
Technical Specifications |
MPS-1100V | MPS-1120 | MPS-1370 |
|---|---|---|---|
|
Power |
1 ph, 220V, 50Hz |
1 ph, 220V, 50Hz |
1 ph, 220V, 50Hz |
|
Voltage |
1.25 Kw |
1.5 Kw |
1.8 Kw |
|
Sealing Speed (m/min.) |
0~12 |
0~12 |
0~12 |
|
Sealing Height |
80~600mm |
80~600mm |
80~600mm |
|
Sealing Width |
6~12 mm |
8~10 / 20 mm |
8~10 / 20 mm |
|
Temperature Range |
0-300 (°C) |
0-300 (°C) |
0-300 (°C) |
|
Max. Loading Weight |
≤10 |
≤15 |
≤25 |
|
Machine Size (LxWxH)(mm) |
1243x580x1228 |
1550x650x1550 |
1550x650x1550 |
