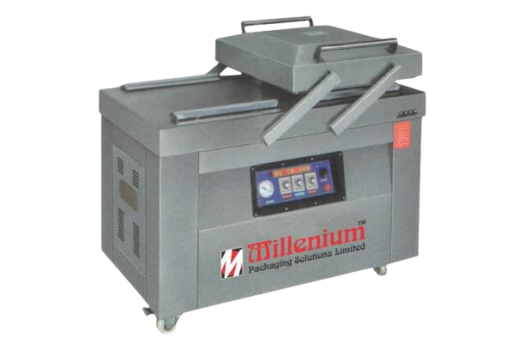

Double Chamber Vacuum Machine
The Double Chamber Vacuum Machine enhances packaging efficiency by allowing simultaneous vacuuming and sealing, ideal for high-volume operations. Its dual-chamber design maximizes productivity, ensuring consistent and reliable packaging while extending product shelf life. Perfect for businesses seeking to streamline their packaging process.
| Model | DZ(Q)-400/2SB | DZ(Q)-500/2SB | DZ(Q)-600/2SB |
|---|---|---|---|
| Voltage | 3 Phase 415V / 50Hz | 3 Phase 415V / 50Hz | 3 Phase 415V / 50Hz |
| Power of Pump | 0.75 KW | 1.5 KW | 2.25 KW |
| Heat-Sealing Power | 0.6 KW | 0.75 KW | 1 KW |
| Lowest Absolute Pressure | 1.33 kpa | 1.33 kpa | 1.33 kpa |
| Volume of Vacuum Case | 550 x 450 x 115mm | 560 x 540 x 150mm | 610 x 540 x 150mm |
| Sealing Strip Size | 400 x 10 mm | 500 x 10mm | 600 x 10mm |
| Number of Heater | 2 each chamber | 2 each chamber | 2 each chamber |
| Exhaustment of Vacuum Pump | 20m3/h | 2 x 20m3/h | 3 x 20m3/h |
| Material of Vacuum Case and hull | Stainless Steel | Stainless Steel | Stainless Steel |
| Dimensions | 1200 x 520 x 850mm | 1260 x 610 x 850mm | 1450 x 610 x 860mm |
| Weight | 180 Kg | 220 Kg | 250 Kg |
