MPS-CS040MA (6050)

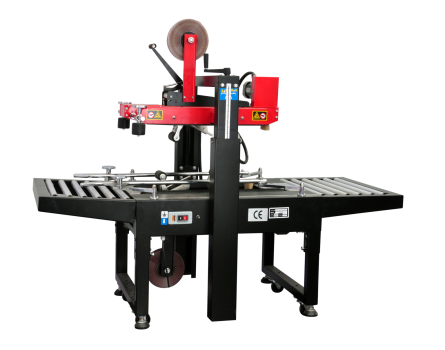

A Manual Adjustment Carton Sealing Machine is a high-efficiency case sealer designed for automatic top and bottom sealing of cartons. It supports cartons with a maximum height of 600mm and width of 500mm, making it ideal for medium to large packaging operations. The Machine is suitable for batch-type packaging lines, where at a time same size of cartons are to be sealed.
| Model | MPS-CS040MA (6050) |
|---|---|
| Function | Top & Bottom Drive |
| Power Supply | 1 Phase 220V 50 Hz 200W |
| Conveying Belt Speed | 20 mtrs/Min. |
| Min. Carton Size | W 150mm x H 150mm x L No Bar |
| Max. Carton Size | W 500mm x H 500mm x L No Bar |
| Width of Adhesive Tape | 48/60/72 mm |
| Working Height | 635mm ~ 780mm (Adjustable) |
| Motor Power | 90W x 2 |
| Tape Used | BOPP/Waterfree/PVC |
| Dimensions (mm) | L 1755mm x W 740 x H (1445~1605) |
| Conveyor Carrying Capacity | Upto 18 Kgs. |
