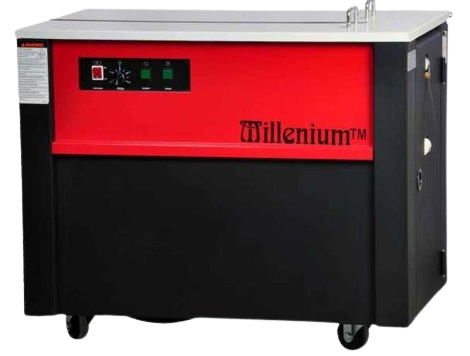

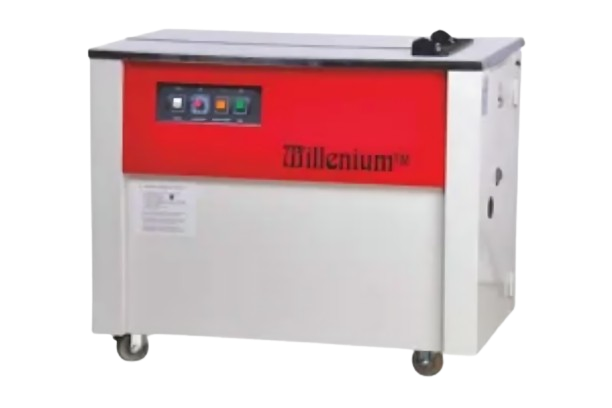

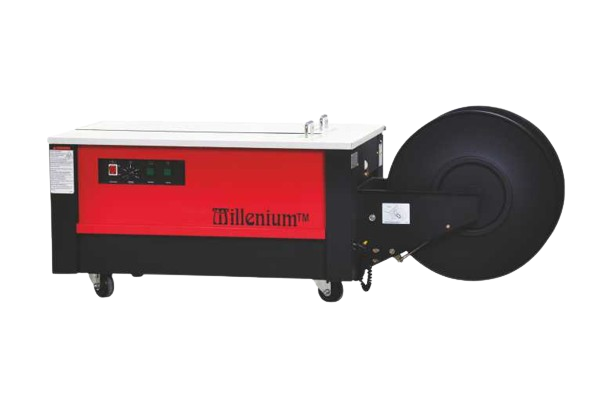

Semi Automatic STRAPPING MACHINE
Our Semi Automatic Strapping Machine is designed for one touch easy operation, the instant heating method starts within 20 seconds with energy saving mode which automatically activates within 15 seconds of non – operation thus ensuring lesser breakdown and better longevity of the machine.
Lift type table-top option allows easy maintenance; intelligent controls in PCB can isolate malfunctioning and reduce time for repairs
Advantages/Features of Semi Automatic Strapping machine
-User Friendly , Easy apply Straps on Carton
-Ready to operate in a few seconds
-Heat Seals the straps
-High Quality Auto CutterLight in Weight
-Use less Space (Can accommodate anywhere)
| Model | MPS-001SH |
|---|---|
|
Strap Cycle Speed |
1.5 sec./ strap (30 - 40 Straps/min.) |
|
Tension Strength |
15~60Kg |
|
Table Height |
750mm (001SH) & 380 mm (002LTH) |
|
Strap Width |
5~15mm (Adjustable) |
|
Sealing Method |
Heat Sealed |
|
Minimum Strapping Size |
60 mm (W) x 30 mm (H) |
|
Maximum Strapping Size |
Not Stipulated |
|
Driving Motor |
1 Ø 220V 200W |
|
Power Supply |
1 Ø 220V 50 Hz 350 W |
|
Dimensions (mm) |
900(W) x 580(D) x 750(H) |
|
Weight |
110Kg |
| Model | MPS-001S |
|---|---|
|
Strap Cycle Speed |
1.5 sec./ strap (30 - 40 Straps/min.) |
|
Tension Strength |
5~50Kg |
|
Table Height |
740mm (001S) & 380 mm (002LT) |
|
Strap Width |
6~15mm (Adjustable) |
|
Sealing Method |
Heat Sealed |
|
Minimum Strapping Size |
60 mm (W) x 30 mm (H) |
|
Maximum Strapping Size |
Not Stipulated |
|
Driving Motor |
1 Ø 220V 200W |
|
Power Supply |
1 Ø 220V 50 Hz 400 W |
|
Dimensions (mm) |
895(W) x 565(D) x 740(H) |
|
Weight |
85Kg |
| Model | MPS-001S |
|---|---|
|
Strap Cycle Speed |
1.5 sec./ strap (30 - 40 Straps/min.) |
|
Tension Strength |
5~50Kg |
|
Table Height |
740mm (001S) & 380 mm (002LT) |
|
Strap Width |
6~15mm (Adjustable) |
|
Sealing Method |
Heat Sealed |
|
Minimum Strapping Size |
60 mm (W) x 30 mm (H) |
|
Maximum Strapping Size |
Not Stipulated |
|
Driving Motor |
1 Ø 220V 200W |
|
Power Supply |
1 Ø 220V 50 Hz 400 W |
|
Dimensions (mm) |
895(W) x 565(D) x 740(H) |
|
Weight |
85Kg |
| Model | MPS-001SE |
|---|---|
|
Strap Cycle Speed |
1.5 sec./ strap (30 - 40 Straps/min.) |
|
Tension Strength |
5~50Kg |
|
Table Height |
740mm |
|
Strap Width |
6~15mm (Adjustable) |
|
Sealing Method |
Heat Sealed |
|
Minimum Strapping Size |
60 mm (W) x 30 mm (H) |
|
Maximum Strapping Size |
Not Stipulated |
|
Driving Motor |
1 Ø 220V 200W - Aluminium |
|
Power Supply |
1 Ø 220V 50 Hz 400 W |
|
Dimensions (mm) |
895(W) x 565(D) x 740(H) |
|
Weight |
85Kg |
| Model | Semi Automatic Pallet Strapping Machine |
|---|---|
|
Strap Guide ( Length ) |
L1000 mm |
|
Tension Strength |
70Kgs / Max. |
|
Table Height |
740mm |
|
Strap Width |
12~15mm |
|
Sealing Method |
Heat Sealed |
|
Driving Motor |
1 Ø 220V 200W - Aluminium |
|
Power Supply |
110/220V 0/60HZ 1PH. 220/380V 50/60HZ 3PH |
|
Dimensions (mm) |
870L x 540W x 1380H mm |
|
Weight |
216 Kgs |
| Model | MPS-001SH |
|---|---|
|
Strap Cycle Speed |
1.5 sec./ strap (30 - 40 Straps/min.) |
|
Tension Strength |
15~60Kg |
|
Table Height |
750mm (001SH) & 380 mm (002LTH) |
|
Strap Width |
5~15mm (Adjustable) |
|
Sealing Method |
Heat Sealed |
|
Minimum Strapping Size |
60 mm (W) x 30 mm (H) |
|
Maximum Strapping Size |
Not Stipulated |
|
Driving Motor |
1 Ø 220V 200W |
|
Power Supply |
1 Ø 220V 50 Hz 350 W |
|
Dimensions (mm) |
900(W) x 580(D) x 750(H) |
|
Weight |
110Kg |
