Semi Automatic Strapping Machine

Our Semi Automatic Strapping Machine is designed for one touch easy operation, the instant heating method starts within 20 seconds with energy saving mode which automatically activates within 15 seconds of non – operation thus ensuring lesser breakdown and better longevity of the machine.

Lift type table-top option allows easy maintenance; intelligent controls in PCB can isolate malfunctioning and reduce time for repairs

Advantages/Features of Semi Automatic Strapping machine

-User Friendly , Easy apply Straps on Carton
-Ready to operate in a few seconds
-Heat Seals the straps
-High Quality Auto CutterLight in Weight
-Use less Space (Can accommodate anywhere)

MPS-001SH

ModelMPS-001SH
Strap Cycle Speed1.5 sec./ strap (30 – 40 Straps/min.)
Tension Strength15~60Kg
Table Height750mm (001SH) & 380 mm (002LTH)
Strap Width5~15mm (Adjustable)
Sealing MethodHeat Sealed
Minimum Strapping Size60 mm (W) x 30 mm (H)
Maximum Strapping SizeNot Stipulated
Driving Motor1 Ø 220V 200W
Power Supply1 Ø 220V 50 Hz 350 W
Dimensions (mm)900(W) x 580(D) x 750(H)
Weight110Kg
ModelMPS-001S
Strap Cycle Speed1.5 sec./ strap (30 – 40 Straps/min.)
Tension Strength5~50Kg
Table Height740mm (001S) & 380 mm (002LT)
Strap Width6~15mm (Adjustable)
Sealing MethodHeat Sealed
Minimum Strapping Size60 mm (W) x 30 mm (H)
Maximum Strapping SizeNot Stipulated
Driving Motor1 Ø 220V 200W
Power Supply1 Ø 220V 50 Hz 400 W
Dimensions (mm)895(W) x 565(D) x 740(H)
Weight85Kg

MPS-001S​

ModelMPS-001S​
Strap Cycle Speed1.5 sec./ strap (30 – 40 Straps/min.)
Tension Strength5~50Kg
Table Height740mm (001S) & 380 mm (002LT)
Strap Width6~15mm (Adjustable)
Sealing MethodHeat Sealed
Minimum Strapping Size60 mm (W) x 30 mm (H)
Maximum Strapping SizeNot Stipulated
Driving Motor1 Ø 220V 200W
Power Supply1 Ø 220V 50 Hz 400 W
Dimensions (mm)895(W) x 565(D) x 740(H)
Weight85Kg
ModelMPS-001SE
Strap Cycle Speed1.5 sec./ strap (30 – 40 Straps/min.)
Tension Strength5~50Kg
Table Height740mm
Strap Width6~15mm (Adjustable)
Sealing MethodHeat Sealed
Minimum Strapping Size60 mm (W) x 30 mm (H)
Maximum Strapping SizeNot Stipulated
Driving Motor1 Ø 220V 200W – Aluminium
Power Supply1 Ø 220V 50 Hz 400 W
Dimensions (mm)895(W) x 565(D) x 740(H)
Weight85Kg

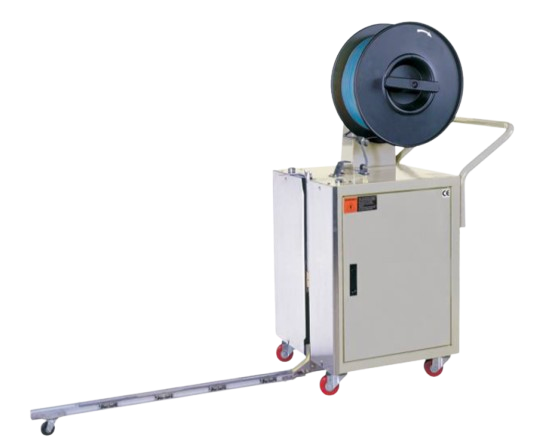

ModelSemi Automatic Pallet Strapping Machine
Strap Guide ( Length )L1000 mm
Tension Strength70Kgs / Max.
Table Height740mm
Strap Width12~15mm
Sealing MethodHeat Sealed
Driving Motor1 Ø 220V 200W – Aluminium
Power Supply110/220V 0/60HZ 1PH. 220/380V 50/60HZ 3PH
Dimensions (mm)870L x 540W x 1380H mm
Weight216 Kgs
Dimensions (mm)895(W) x 565(D) x 740(H)
Weight85Kg

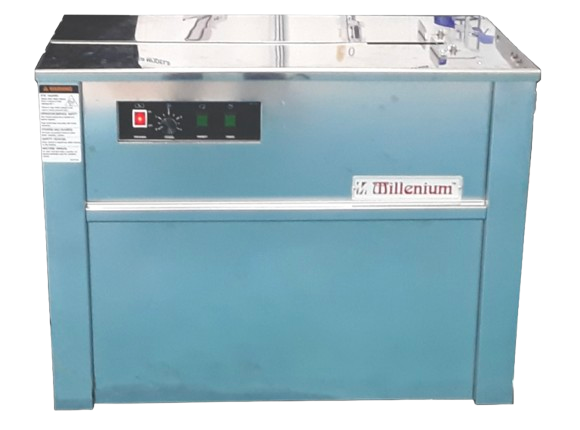

ModelSemi Automatic Strapping Machine (STAINLESS STEEL)
Strap Cycle Speed1.5 sec./ strap (30 – 40 Straps/min.)
Tension Strength15~60Kg
Table Height750mm (001SH) & 380 mm (002LTH)
Strap Width5~15mm (Adjustable)
Sealing MethodHeat Sealed
Minimum Strapping Size60 mm (W) x 30 mm (H)
Maximum Strapping SizeNot Stipulated
Driving Motor1 Ø 220V 200W
Power Supply1 Ø 220V 50 Hz 350 W
Dimensions (mm)900(W) x 580(D) x 750(H)
Weight110Kg
