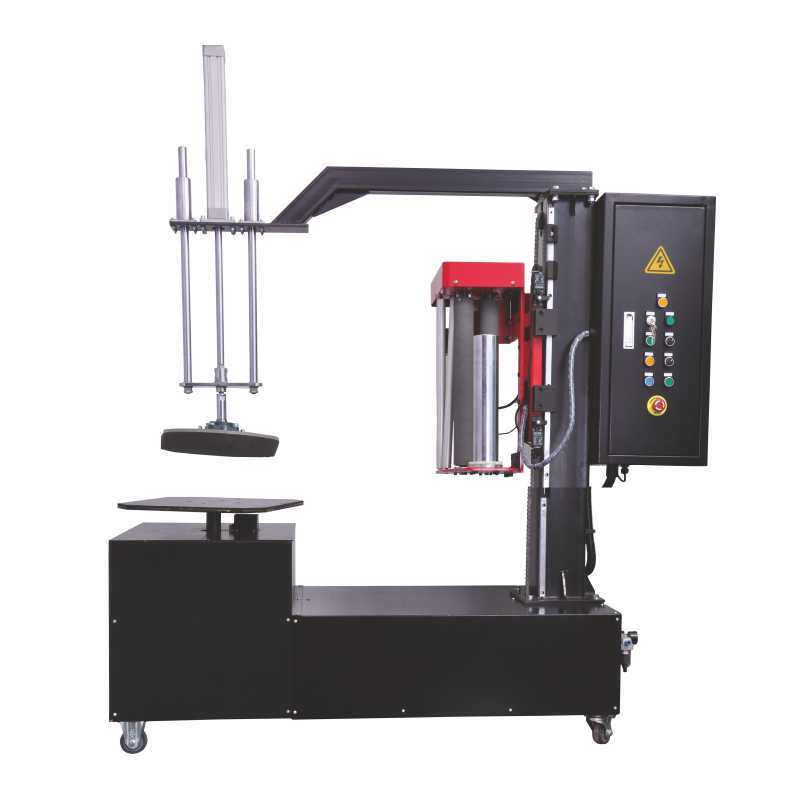

Stretch Wrapping Machine with up and down drive
A stretch wrapping machine is a device used to wrap products with stretch film to secure and protect them for transport or storage. Stretch wrapping is widely used in various industries for packaging Carton boxes, pallets etc. keeping them stable, dust-free, and tamper-resistant. The stretch film is highly elastic, and when applied under tension, it clings tightly to the product, forming a secure wrap.
| Model | W-090-SWBW(A) |
|---|---|
| Control | Delta PLC | 0-3 top(bottom) & up-down Wrap times Choose Cycle Pause capability |
| Film Carriage drive | Film carriage can up-down to suit difference height product; Heavy duty chain lift, calm and safety |
| Film carriage | Power prestretch 300% |
| Height Sensing | Adjustable limit block to active top limiting switch |
| Rotating Platform Speed | 3 – 20 RPM adjustable by frequency charger |
| Top Plate | Pneumatic top plate |
| Max. Load Size** | 300 – 600(L) x 300 – 600mm (W) x 300 – 600mm (H) |
| Max. Weight Capacity | 100Kg |
| Power Supply | 220V/50Hz/1Phase 1.0Kw |
| Machine Weight | 220 Kg |
| Machine Dimension | 1740mm x 600mm x 1800mm |
