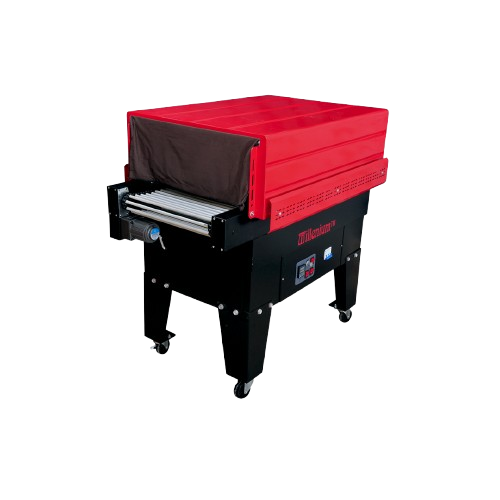

Shrink Tunnel
Millenium Packaging Solutions is the leading supplier and manufacturer of Shrink Tunnels, a Shrink Packaging Machine. This Heat Shrink Wrapping Machine comes in variety of models like SHTU-1208, SHTU-1810, SHTU-1814, SHTU-2614
All of these machines follows the same procedure for shrinking by "hot wind blowing in a down cyclone structure."
Salient Features
- Both the height of tunnel and chamber opening on two sides are adjustable in A-Series.
- Model SHTU-1208 & SHTU-1810 are designed with single blower
- Model SHTU-1814 & SHTU-2614 are designed with longer chamber to obtain optimal shrinking effect at higher speed.
- Machines are fitted with castor wheels for portability.
Application
The Shrink Machines SHTU-1208 & SHTU-1810 are suitable for a variety of films, such as PVC, POF, PP etc.
The Shrink Machines SHTU-1814 & SHTU-2614 are suitable for a variety of films, such as PVC, POF, PP etc. and especially for PE
Specifications:
| Model | SHTU-1208 | SHTU-1810 | SHTU-1814 | SHTU-2614 |
|---|---|---|---|---|
| Machine Dimension | 1200x500x1050 | 1200x650x1100 | 1600x650x1200 | 1600x850x1200 |
| Tunnel Dimension | 900x300x50~200 | 900x450x50~250 | 1200x450x50~350 | 1200x650x50~350 |
| Conveyor Loading | 10 | 10 | 30 | 30 |
| Conveyor Speed(M/min) | 0~10 | 0~10 | 0~10 | 0~10 |
| Power Supply | 1Ø, 220V, 50Hz | 3Ø, 380V, 50Hz | 3Ø, 380V, 50Hz | 3Ø, 380V, 50Hz |
| Power(kw) | 5.0 | 6.5 | 9.6 | 9.6 |
| Net Weight(kg) | 60 | 90 | 120 | 150 |
| Applicable Film | POF/PVC | POF/PVC | POF/PVC/PE | POF/PVC/PE |
