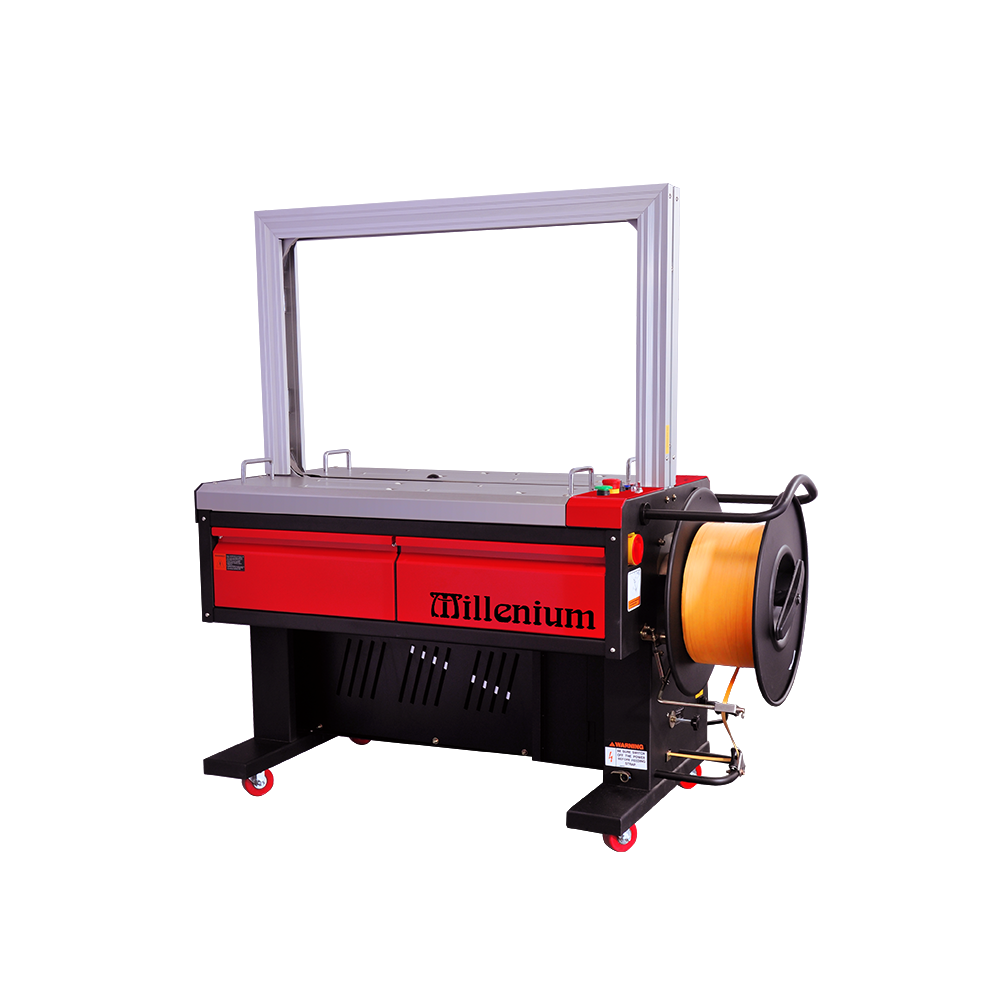

Automatic Strapping Machine
An Automatic Strapping Machine is used in packaging lines to apply plastic straps (typically polypropylene or polyester) around packages, boxes, or pallets to secure them for storage or shipment. It automates the strapping process, improving speed and consistency while reducing manual labor.
Advantages / Features of Automatic Strapping Machine
Fully automatic operation: Detects the package and applies the strap without operator involvement.
High-speed performance: Can strap dozens of packages per minute depending on model.
Adjustable tension control: Ensures secure strapping without damaging the product.
Loop ejector / Jam prevention: Helps maintain smooth operation.
Compatible strap widths: Usually from 5 mm to 15 mm.
PLC controlled: Easy to adjust settings.
Arch size customization: To fit different package sizes.

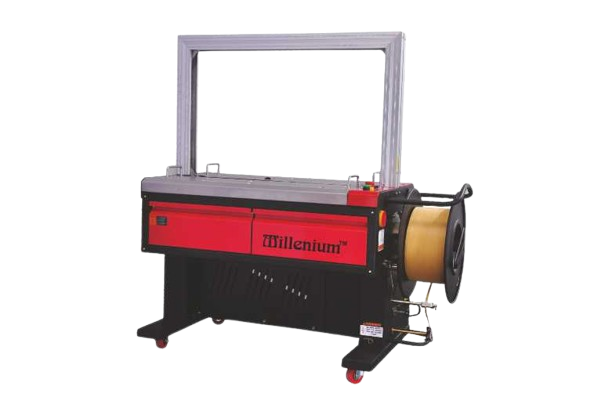

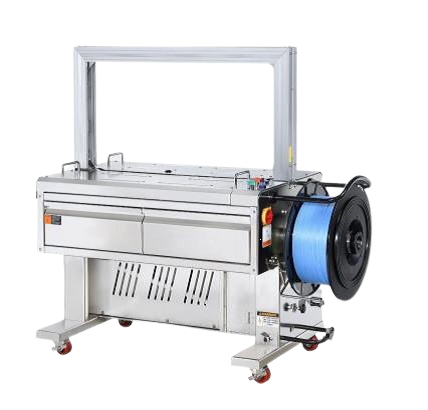

| Model | Automatic Strapping Machine – MPS 010FASTA1 |
|---|---|
| Arch Size | 800W X 600H mm (Standard) |
| Power Supply | 3, 415V, 50 Hz, 850 watts |
| Strap Cycle Speed | 2.5Sec./Cycle |
| Tension Strength | Max. 70 kgs. (Adjustable) |
| Strap Width | 9/12 mm –to be specified at the time of placing the order |
| Sealing Method | Heat Sealing |
| Table Height | 820 mm |
| Control | High Precision Reliable – Micro Processor Control & PCB |
| Model | Automatic Strapping Machine – MPS 010FASTA1R |
|---|---|
| Arch Size | 800W X 600H mm (Standard) |
| Power Supply | 3, 415V, 50 Hz, 850 watts |
| Strap Cycle Speed | 2.5Sec./Cycle |
| Tension Strength | Max. 70 kgs. (Adjustable) |
| Strap Width | 9/12 mm –to be specified at the time of placing the order |
| Sealing Method | Heat Sealing |
| Table Height | 820 mm |
| Control | High Precision Reliable – Micro Processor Control & PCB |
| Model | Automatic Strapping Machine – Double Head |
|---|---|
| Arch Size | 800W X 600H mm (Standard) |
| Strap Cycle Speed | 28 Cycles / 60hz / per Min. 26 Cycles / 50hz / per Min. |
| Tension Strength | 70Kgs / Max. |
| Table Height | 810mm |
| Strap Width | 9~15.5mm |
| Sealing Method | Heat Sealing |
| Power Supply | 110/220V 50/60HZ 1PH. |

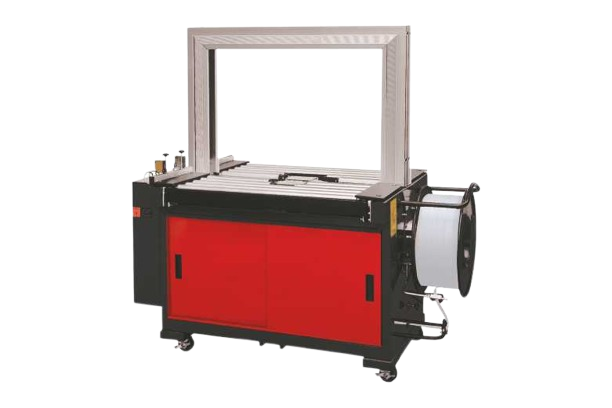

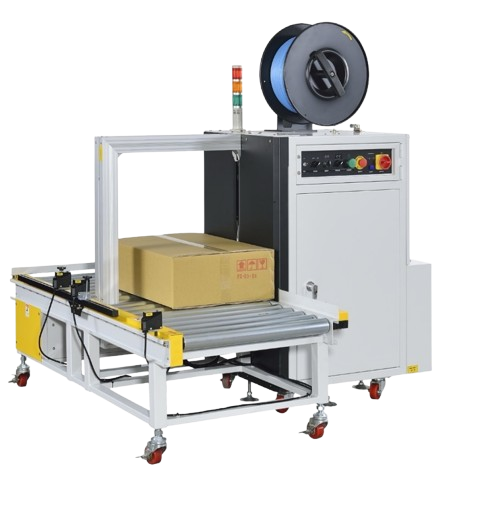

| Model | Fully Automatic Strapping Machine Online - Power Roller Table |
|---|---|
| Arch Size | 800W X 600H mm (Standard) |
| Power Supply | 110/220V 50/60 Hz 1Ph 220/380V 50/60 Hz 3 Ph |
| Strap Cycle Speed | 2.5Sec./Cycle |
| Tension Strength | Max. 70 Kgs. |
| Strap Width | 9~15.5 mm |
| Sealing Method | Heat Sealing |
| Dimension | 1550W x 800D x 1470H mm |
| Table Height | 810 mm |
| Machine Weight | 330 Kgs. |
| Gross Weight | 430 Kgs |
| Power Belt Speed | 15M/50Hz Per Min. |
| Package Size | 200-520W, 30-560H mm |

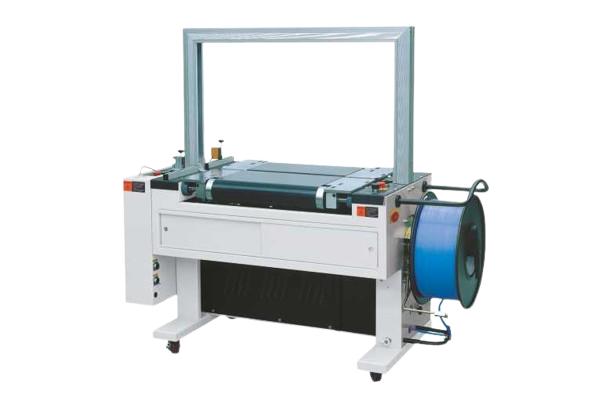

| Model | Fully Automatic Strapping Machine Online - Power Belt Table |
|---|---|
| Arch Size | 800W X 600H mm (Standard) |
| Power Supply | 110/220V 50/60 Hz 1PH 220/380V 50/60 Hz 3 PH |
| Strap Cycle Speed | 2.5Sec./Cycle |
| Tension Strength | Max. 70 Kgs. (Adjustable-Mechanically) |
| Strap Width | 9~15.5 mm |
| Sealing Method | Heat Sealing |
| Dimension | 1550W x 800D x 1470H mm |
| Table Height | 820 mm |
| Machine Weight | 307 Kgs. |
| Gross Weight | 402 Kgs |
| Power Belt Speed | 17M/50Hz Per Min. |
| Package Size | 200-520W, 30-560H mm |

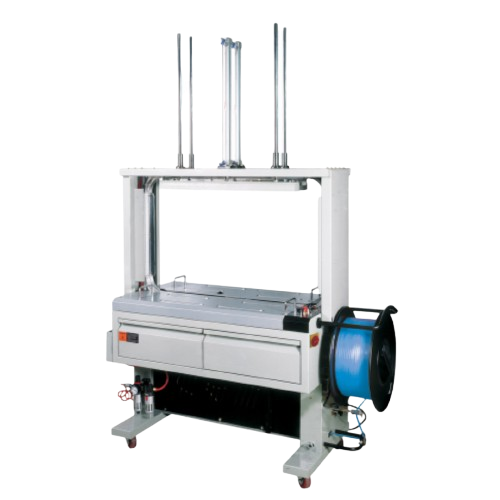

| Model | Automatic Strapping Machine (Penumatic Pressing) |
|---|---|
| Arch Size | 800W X 600H mm (Standard) |
| Power Supply | 110/220V 50/60HZ 1PH. 220/380V 50/60HZ 3PH |
| Strap Cycle Speed | 28 Cycles / 60hz / per Min. 26 Cycles / 50hz / per Min. |
| Tension Strength | 70Kgs / Max. |
| Strap Width | 9~15.5 mm |
| Sealing Method | Heat Sealing |
| Dimension | 1400L x 640W x 2068H mm |
| Table Height | 810 mm |
| Power Belt Speed | 17M/50Hz Per Min. |
| Stroke | 550mm |
| Pressure | 5kg/cm 2 |
| Cylinder | Inner Diameter: φ40 |

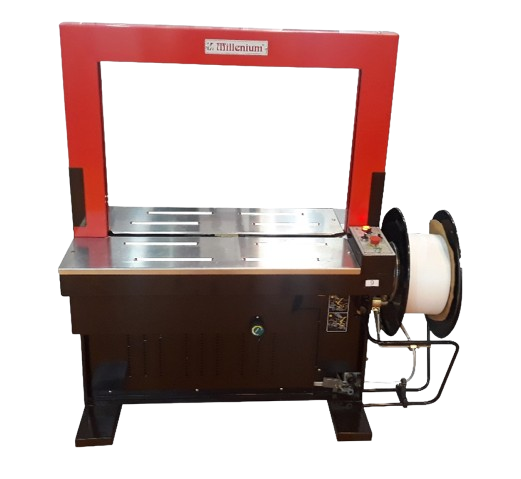

| Model | Automatic Strapping Machine – Side Sealing Type |
|---|---|
| Arch Size | 600W x 850H mm (Standard) |
| Power Supply | 110/220V 50/60HZ 1PH. 220/380V 50/60HZ 3PH |
| Strap Cycle Speed | 28 Cycles / per Min. |
| Tension Strength | 70Kgs / Max. |
| Strap Width | 9~15.5 mm |
| Sealing Method | Heat Sealing |
| Dimension | 1400L x 640W x 1740H mm3 |
| Model | Automatic Strapping Machine – Side Sealing Type |
|---|---|
| Arch Size | 1300W x 2500H mm (customization) |
| Power Supply | 110/220V 50/60HZ 1PH. 220/380/415V 50/60HZ 3PH |
| Strap Cycle Speed | 3 sec. / cycles (60HZ) (Depends on the package size) |
| Tension Strength | 70Kgs / Max. |
| Strap Width | 12~19mm |
| Sealing Method | Heat Sealing |
| Dimension | 3446W x 800D x 2935H mm |

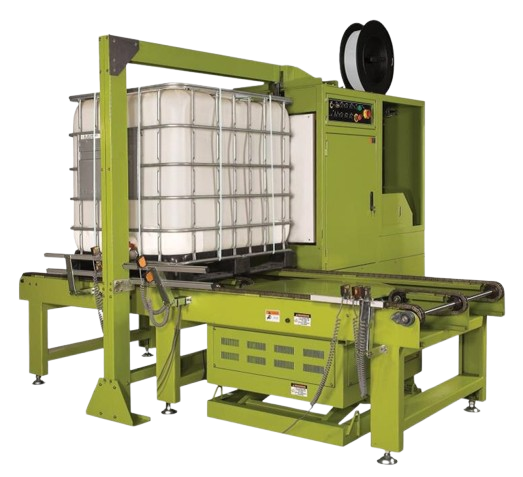

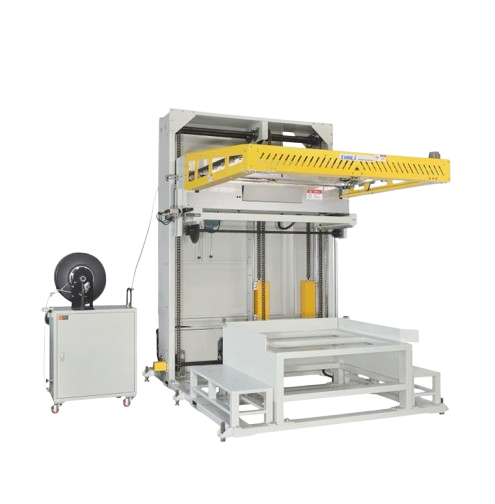

| Model | Fully Automatic Horizontal Strapping Machine – Pallets |
|---|---|
| Arch Size | W 1400 X D 1300 X H 1500 mm |
| Power Supply | 110/220V 50/60HZ 1PH. 220/380V 50/60HZ 3PH |
| Tension Strength | 70Kgs / Max. |
| Strap Width | 9~15.5 mm |
| Sealing Method | Heat Sealing |
| Table Height | H650mm (customization) |

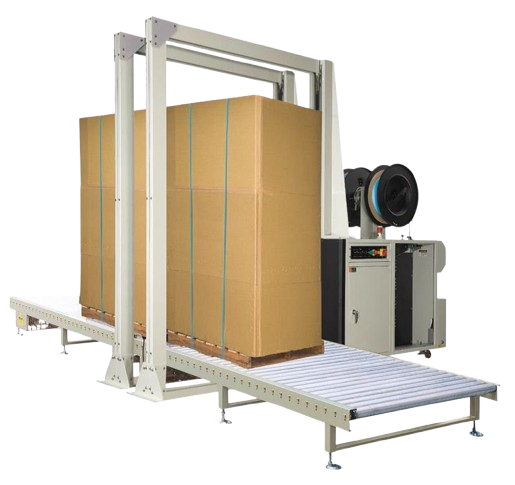

| Model | Automatic Strapping Machine – Double Head |
|---|---|
| Arch Size | 1000W x 2800H mm (Customize) |
| Power Supply | 220/380V 50/60HZ 3PH |
| Tension Strength | 70Kgs / Max. |
| Strap Width | 12, 15, or 19 mm |
| Sealing Method | Heat Sealing |
