Stretch Wrapping Machine
A stretch wrapping machine is a device used to wrap products with stretch film to secure and
protect them for transport or storage. Stretch wrapping is widely used in various industries for
packaging Carton boxes, pallets etc. keeping them stable, dust-free, and tamper-resistant. The
stretch film is highly elastic, and when applied under tension, it clings tightly to the product, forming
a secure wrap.
Advantages/Features of Semi Automatic Strapping machine
-User Friendly , Easy apply Straps on Carton
-Ready to operate in a few seconds
-Heat Seals the straps
-High Quality Auto CutterLight in Weight
-Use less Space (Can accommodate anywhere)

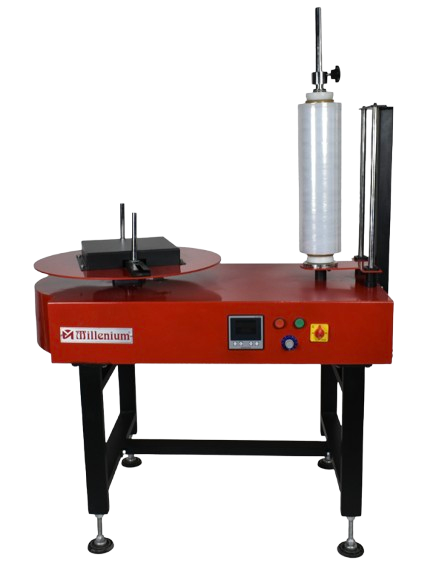

| Model | W-090-SWBW(B) |
|---|---|
|
Turn Table Dia |
400 X 400 mm |
|
TT Speed |
3-20 RPM |
|
Max. Roll Width |
500 mm |
|
Packing Height |
500 mm |
|
Max. Package Size |
500mm X 500mm X 500mm |
|
Weight Capacity |
60 Kgs (Max) |
|
Power Consumption |
500W |

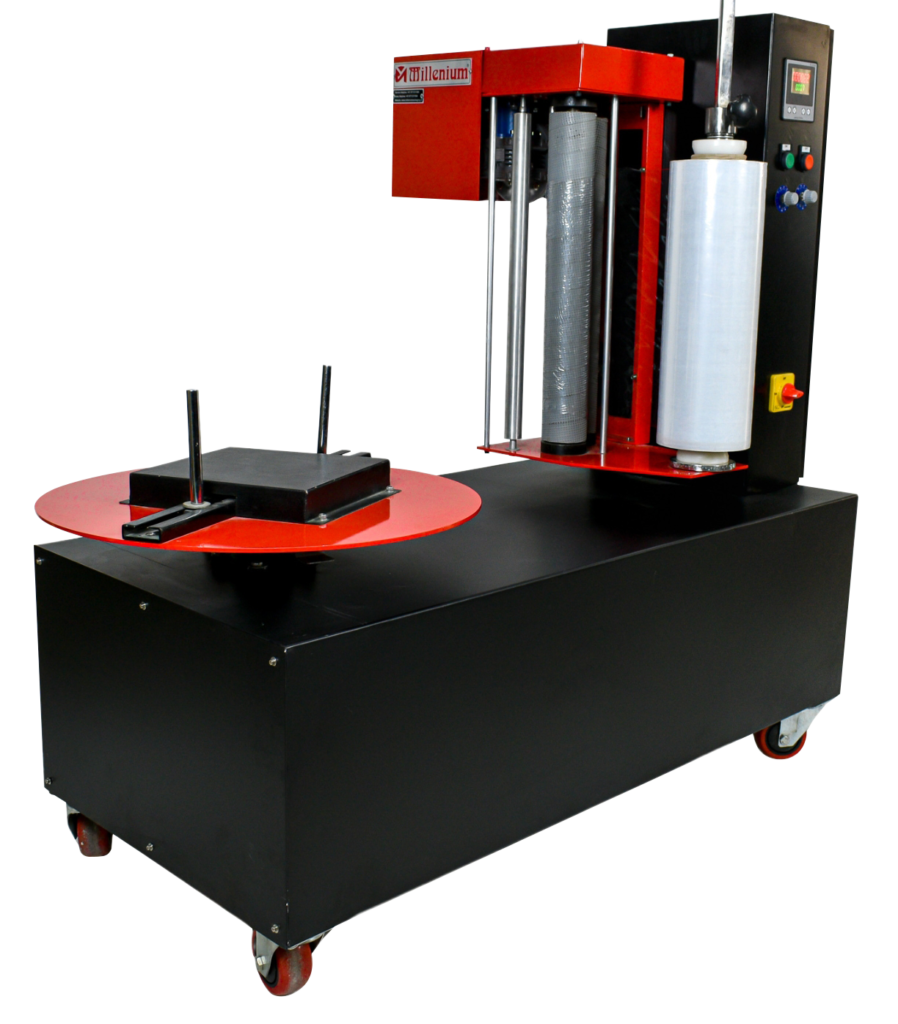

| Model | W-090-SWBW(C) |
|---|---|
|
Turn Table Dia |
400 X 400 mm |
|
TT Speed |
3-12 RPM |
|
Power Pre Stretch Unit |
0-250% : 300% (optional) |
|
Max. Roll Width |
500 mm |
|
Packing Height |
500 mm |
|
Max. Package Size |
500mm X 500mm X 500mm |
|
Weight Capacity |
80 Kgs (Max) |
|
Power Consumption |
750W |
| Model | W-090-SWBW(D) |
|---|---|
|
Turn Table Dia |
400 X 400 mm |
|
TT Speed |
3-12 RPM |
|
Power Pre Stretch Unit |
0-250% : 300% (optional) |
|
Max. Roll Width |
500 mm |
|
Packing Height |
500 mm |
|
Max. Package Size |
500mm X 500mm X 500mm |
|
Weight Capacity |
80 Kgs (Max) |
|
Power Consumption |
750W |
|
Compressed Air |
6 Bars |

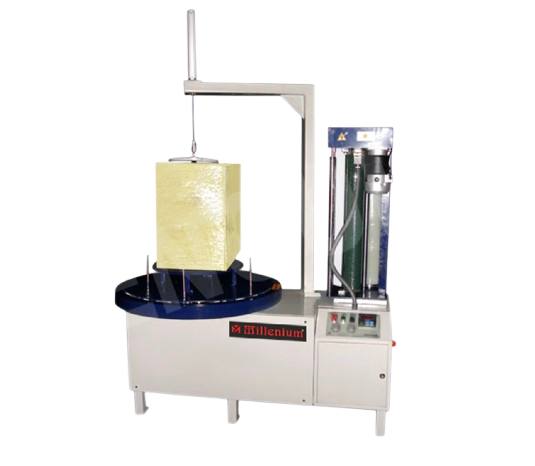

| Model | W-090-SWBW(A) |
|---|---|
|
Control |
Delta PLC | 0-3 top(bottom) & up-down Wrap times Choose Cycle Pause capability |
|
Film Carriage drive |
Film carriage can up-down to suit difference height product; Heavy duty chain lift, calm and safety |
|
Film carriage |
Power prestretch 300% |
|
Height Sensing |
Adjustable limit block to active top limiting switch |
|
Rotating Platform Speed |
3 - 20 RPM adjustable by frequency charger |
|
Top Plate |
Pneumatic top plate |
|
Max. Load Size** |
300 - 600(L) x 300 - 600mm (W) x 300 - 600mm (H) |
|
Max. Weight Capacity |
100Kg |
|
Power Supply |
220V/50Hz/1Phase 1.0Kw |
|
Machine Weight |
220 Kg |
|
Machine Dimension |
1740mm x 600mm x 1800mm |
| Model | MPS-W-090-SWRT |
|---|---|
|
Maximum wrapping speed |
15-25 loads/hour |
|
Max Wrapping Height & Weight |
2400mm / 2000KG |
|
Turntable Speed
|
0-13RPM(Adjustable) |
|
Turntable Size |
1650mm |
|
Turntable Drive |
0.75PH Chain Drive |
|
Cut Film |
Automatic |
|
Machine Size |
L:2800mm W:1800mm H:2650mm |
|
Machine Weight |
800KG |
|
Standard Pre-Stretch |
300% pre-stretch |
|
Film Capacity |
250mm Diameter |
|
Standard Film Width |
500mm |
|
Film Delivery System |
Power Pre -Stretch |
| Model | MPS-RW-P500 |
|---|---|
|
Automation Grade |
Automatic |
|
Material |
Plastic |
|
Voltage |
220/380V |
|
Driven type |
PLC |
|
Power |
0.8 kw Volt (v) |
|
Dimension(L* W*H) |
1460X840X14 92 (mm) |
|
Machine Weight |
300 kg |

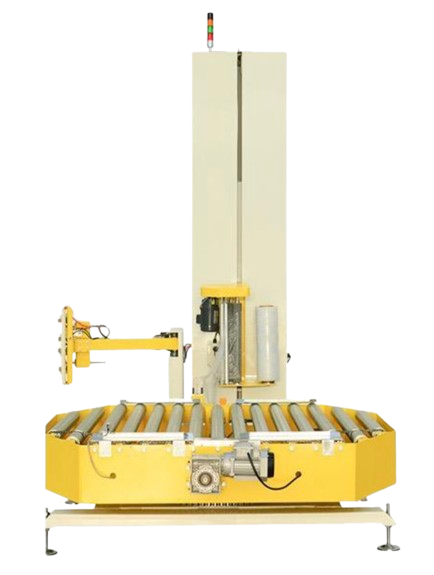

| Model | MPS-RA-2000 |
|---|---|
|
Rotary Diameter |
ID: Φ 2000 mm |
|
G.W/N.W |
1400kg/1200kg |
|
Power Voltage |
1 P/3P AC 220/380V 50/60 Hz 1.25 kw |
|
Air Pressure |
0.4～0.6 MPa |
|
Working Speed |
0~15r/min |
|
Mast height / Wrapping height |
H = 3650 mm /
H = 2400 mm |
|
Capacity |
1500 kg |

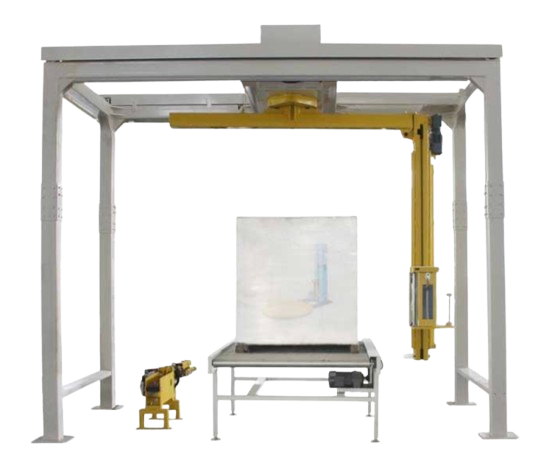

| Model | MPS-OP-2000 |
|---|---|
|
Rotary Diameter |
ID: Φ 2000 mm |
|
G.W/N.W |
1400kg/1200kg |
|
Power Voltage |
3 P AC 380V 50/60 Hz 2.5 kw |
|
Air Pressure |
0.4～0.6 MPa |
|
Speed of Turnable |
0~10r/min (Adjustable) |
|
Mast height / Wrapping height |
H2400mm （optional 2000/2700/3000/3200/3 400） |
|
Capacity |
2000 kg |

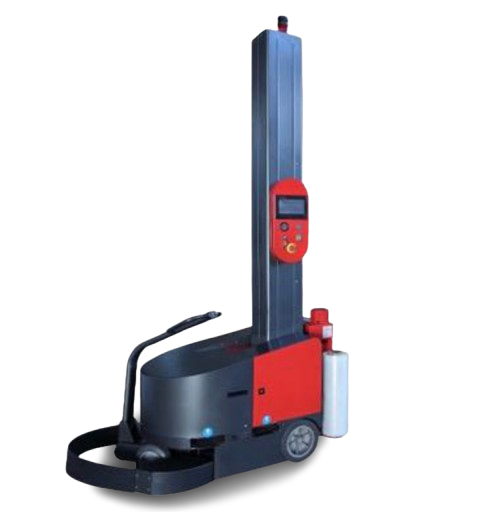

| Model | MPS-Robo-2400 |
|---|---|
|
Around Speed |
90m/min |
|
Max wrapping height |
2400mm(optional 2800mm) |
|
Film strech(%) |
300%&230% two step change by handle (250%and 200% option) |
|
Film tension & Elevator Unit speed |
Adjustable |
|
Max.film spec. |
∮250mm |
|
Machine size |
1906×1225×2943mm |
|
Machine net weight |
430kg |
