Strapping Machines

The Semi Automatic Strapping Machine offered by us are available in various models which makes the products suitable for various Box Strapping application/usage.

Reducing manual labor, our machines are fabricated with sturdy components and raw material which are produced with the highest degree of quality control so as to ensure trouble-free and reliable operations.

To assure a defect-free range of machines, our quality controllers check the consignments on the basis of several parameters.

Features

User Friendly
Designed for one touch easy operation. Instant heating in only 20 sec.
Power Saving
Energy saving mode activates within 15 sec. of non usage and allows for instant operation. This ensures lesser breakdowns and better longevity.
Easy Maintenance
Lift type tabletop (option) allows convenient maintenance, intelligent controls in PCB can isolate malfunction and reduce time for repairs.
Easy Tension Adjusts
External adjustable tension knob facilitates easy and simple selection of tension force.
Easy Straps Change
Strap width can easily be changed with the help of adjustable strap width guides.
Safety Design
Lower control voltage (DC 24V) reduces the chance of electrical shock and prolongs machine life.

Semi Automatic Strapping Machine

Semi Automatic Strapping Machines (Heavy Duty)



MPS-001SH

Specifications :

Strap Cycle Speed
1.5 sec./ strap (30 - 40 Straps/min.)
Tension Strength
15~60Kg
Table Height
750mm (001SH) & 380 mm (002LTH)
Strap Width
5~15mm (Adjustable)
Sealing Method
Heat Sealed
Minimum Strapping Size
60 mm (W) x 30 mm (H)
Maximum Strapping Size
Not Stipulated
Driving Motor
1 Ø 220V 200W
Power Supply
1 Ø 220V 50 Hz 350 W
Dimensions (mm)
900(W) x 580(D) x 750(H)
Dimensions (mm)
110Kg

Semi Automatic Strapping Machines (Regular)



MPS-001S

Specifications :

Strap Cycle Speed
1.5 sec./ strap (30 - 40 Straps/min.)
Tension Strength
5~50Kg
Table Height
740mm (001S) & 380 mm (002LT)
Strap Width
6~15mm (Adjustable)
Sealing Method
Heat Sealed
Minimum Strapping Size
60 mm (W) x 30 mm (H)
Maximum Strapping Size
Not Stipulated
Driving Motor
1 Ø 220V
Power Supply
1 Ø 220V 50 Hz 400 W
Dimensions (mm)
895(W) x 565(D) x 740(H)
Dimensions (mm)
85Kg

Low Table Semi Automatic Strapping Machine

Low Table Semi Automatic Strapping Machine

MPS-002LTH

In our large line of Packaging Machines we offer Low Table Semi Automatic Strapping Machine. This range of machine fall under Semi Automatic Category. This machine benefits to decrease the labour as well as production/packaging cost. Our machines are fabricated with sturdy raw material which gives a long functional life to the consignments. These machines are majorly used to strap small/medium size boxes catering to small & medium packaging volumes

Specifications :

Strap Cycle Speed
1.5 sec./ strap (30 - 40 Straps/min.)
Tension Strength
15~60Kg
Table Height
750mm (001SH) & 380 mm (002LTH)
Strap Width
5~15mm (Adjustable)
Sealing Method
Heat Sealed
Minimum Strapping Size
60 mm (W) x 30 mm (H)
Maximum Strapping Size
Not Stipulated
Driving Motor
1 Ø 220V 200W
Power Supply
1 Ø 220V 50 Hz 350 W
Dimensions (mm)
900(W) x 580(D) x 750(H)
Dimensions (mm)
110Kg

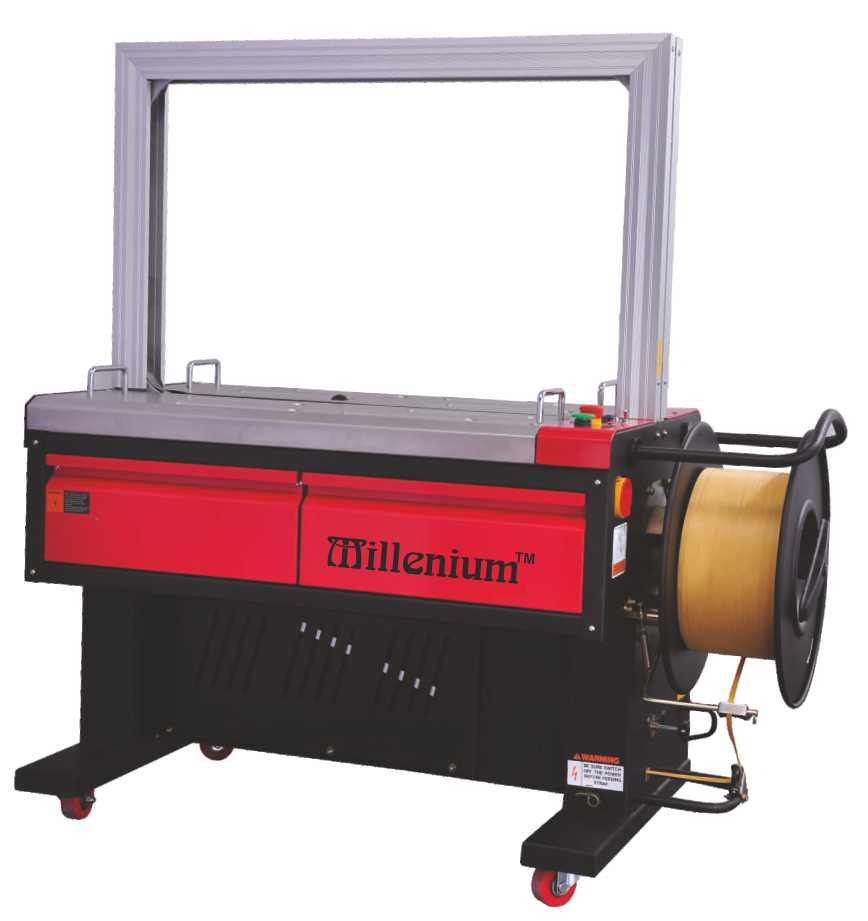

Automatic Strapping Machines

Automatic Strapping Machines

MPS 010FASTA1

We offer our clients a wide range of Automatic Strapping Machines with the international standards. Our professionals use state of art technology, techniques and machinery in order to supply the unmatched quality products to our customers. We ensure reliability and durability to the products offered by us by using best of quality raw materials sourced from our certified vendors of the market. These machines are majorly used to strap small/medium/Large size boxes catering to small, medium and heavy packaging volumes.
The Machine can be well integrated with input power roller (belt) conveyors, Carton Sealing Machines, 90-degree turntable and output power roller (belt) conveyors, etc to form a Fully Automatic Packaging Line.

Specifications :

Arch Size
850W x 600H mm (Standard)
Power Supply
3, 380V, 50 Hz, 1250 watts
Strap Cycle Speed
27 Cycles per Min
Tension Strength
Max. 70 Kgs. (Adjustable-Mechanically)
Strap Width
9/12/15 mm - to be specified at the time of placing the order
Sealing Method
Heat Sealing
Dimension
1400W x 640D x 1475H mm
Table Height
805 mm
Machine Weight
220 Kgs.
Gross Weight
265 Kgs.
Control
PLC Controlled

Online Fully Automatic Strapping Machine with Power Belt Table

Online Fully Automatic Strapping Machine with Power Belt Table

MPS 010FA85PBU

The Machine can be well integrated with input power roller (belt) conveyors, Carton Sealing Machines, 90-degree turntable and output power roller (belt) conveyors, etc to form a Fully Automatic Packaging Line.

Features
  • Standardised Power belt table model with 2 sets of Photocell.
  • Optional Straps No. is available for 1,2 or no strapping on the packages More straps option is also available as an option before order is fixed.
  • This model can incorporate with input and output conveyors as a strapping system. The control system of conveyors can be connected with this model.
  • An optional photocell to control the table transmitting is available, which can auto stop the table when no package is input.

Specifications :

Size
850W x 600H mm (Standard)
Power Supply
110/220V 50/60 Hz 1PH 220/380V 50/60 Hz 3 PH
Strap Cycle Speed
2.5 Sec. / Cycle
Tension Strength
Max. 70 Kgs. (Adjustable-Mechanically)
Strap Width
9~15.5 mm
Sealing Method
Heat Sealing
Dimension
1150W x 640 D x 1550 H mm
Table Height
820 mm
Package Size
200-520W, 30-560H mm
Machine Weight
307 Kgs.
Gross Weight
402 Kgs.
Power Belt Speed
17M/50Hz Per Min.

Online Fully Automatic Strapping Machine with Power Roller Table

Online Fully Automatic Strapping Machine with Power Roller Table

MPS010FA85PRU

The Machine can be well integrated with input power roller (belt) conveyors, Carton Sealing Machines, 90-degree turntable and output power roller (belt) conveyors, etc to form a Fully Automatic Packaging Line.

Features
  • Standardised Power belt table model with 2 sets of Photocell 85PRU-2HT.
  • Optional Straps No. is available for 1,2 or no strapping on the packages More straps application is also available as an option before order is fixed.
  • This model can incorporate with input and output conveyors as a strapping system. The control system of conveyors can be connected with this model.
  • An optional photocell to control the table transmitting is available, which can auto stop the table when no package is input.
  • Equipped with Table Roller Cover.

Specifications :

Size
850W x 600H mm (Standard)
Power Supply
110/220V 50/60 Hz 1Ph 220/380V 50/60 Hz 3 Ph
Strap Cycle Speed
2.5 Sec. / Cycle
Tension Strength
Max. 70 Kgs.
Strap Width
9~15.5 mm
Sealing Method
Heat Sealing
Dimension
1550W x 800D x 1470H mm
Table Height
810 mm
Package Size
200-520W, 30-560H mm
Machine Weight
330 Kgs.
Gross Weight
430 Kgs
Power Belt Speed
15M/50Hz Per Min.

Strapping Machines

Supplying and serving the industry with Strapping Machines since year 2000.

In addition to this, We have supplied n numbers of these machines and consumables like, Strapping Rolls, Self Adhesive Tapes, Stretch Films, Shrink Films in the industry.

An array of strapping machine in different models are available with us, such as,

Semi Automatic Strapping Machine, Such as,

Regular Model

Heavy Duty Model

Low-Table Model

Automatic Strapping Machine, Such as,

Fully Automatic Strapping Machine

Power Roller Automatic Strapping Machine

Power Belt Automatic Strapping Machine

Moreover, The Automatic Strapping machine can easily be combined with our other models, like, Taping Machines, Shrink Packaging Machines

Other Machines available such as, :-

Carton Taping Machines

Shrink Packaging Machines,

Vacuum Packaging Machines,

Web Sealers,

Sealing Machines,

Strapping Rolls, Self Adhesive Tapes, Shrink Films, Stretch Films.
